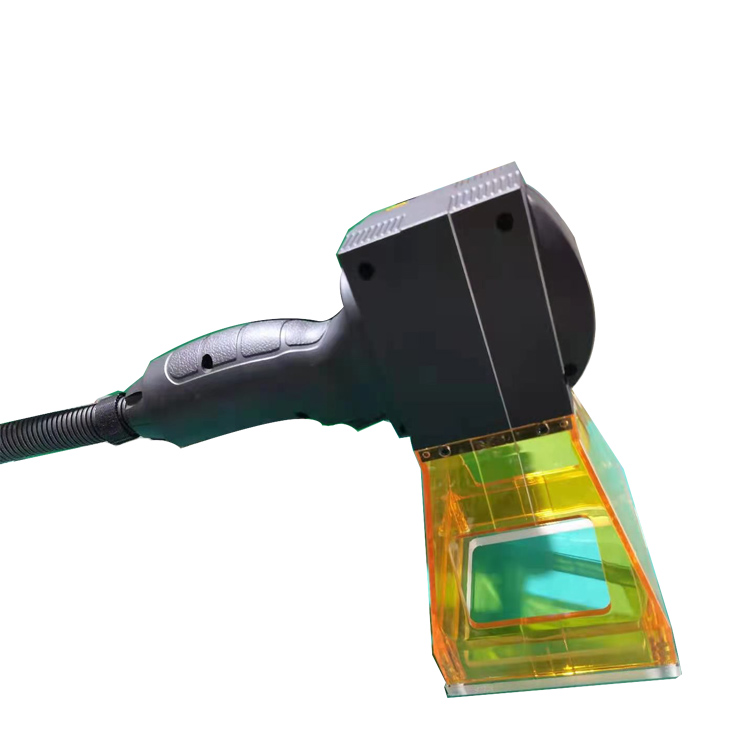

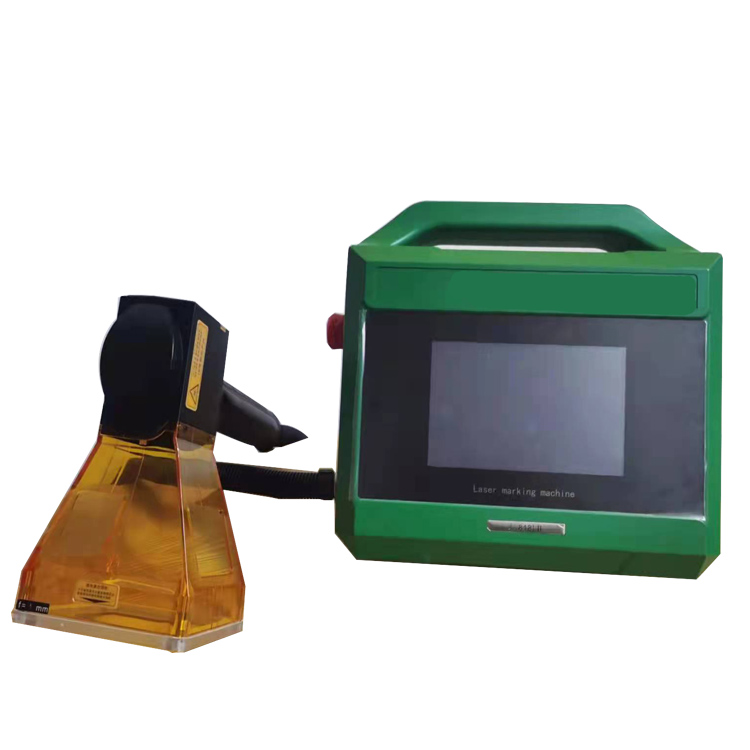

Handheld laser marking machine
The upgraded handheld model has more language functions, updated the emergency stop function in line with the German standard, and is equipped with a battery with an ultra long service life, which is simple to operate and convenient to use. It is widely used in electronics, motors, pipes, batteries, hardware, car parts, stainless steel and other industries.
Description
- Fiber beam delivery with integrated optical isolator
- Extremely lightweight and equipped with a handle for increased portability
- Compact design, easy to move
- Built in touch screen dispay for easier operation
- 50mm x 50mm or 100mmx100mm Marking Area
| Technical Parameters | ||
| Model | LD20i | LD30i |
| Output power | ≥20-watt | ≥30-watt |
| Material | Anodized aluminum | |
| Laser type | Fiber laser source | |
| Laser wavelength | 1064nm | |
| Marking method | High-precision 2D scanning | |
| Marking speed | ≤7000mm/s | |
| Control system | Highly- integrated motherboard, a 7-inch touch display built-in. Can be connected to extra 10-inch touch screen. | |
| Operating system | WIN CE | |
| Cooling system | Air cooling | |
| Type of marking line | Dot matrix / vector (both are available) | |
| Reflector size | Standard size:8.5mm | |
| Marking range | Standard:50mm×50mm/100mmx100mm | |
| Positioning method | Red light positioning | |
| Lines of marking | Any number of lines within the marking field | |
| Marking speed | 650 characters/sec (the specific speed is related to product material and printing content) | |
| Font | Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries | |
| File format | BMP/DXF/HPGL/JPEG/PLT | |
| Bar code / QR code | CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc. | |
| Power | 220V | |
| Max. power | ≤300W | |
