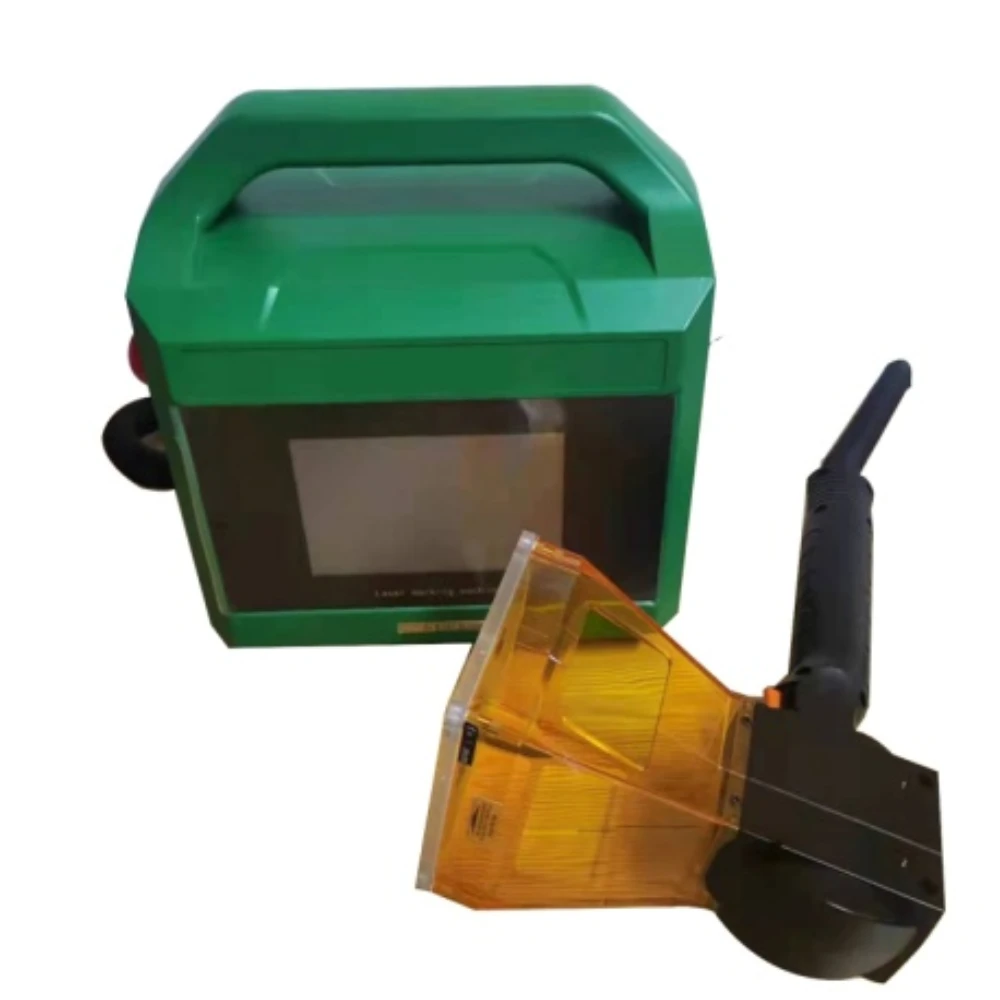

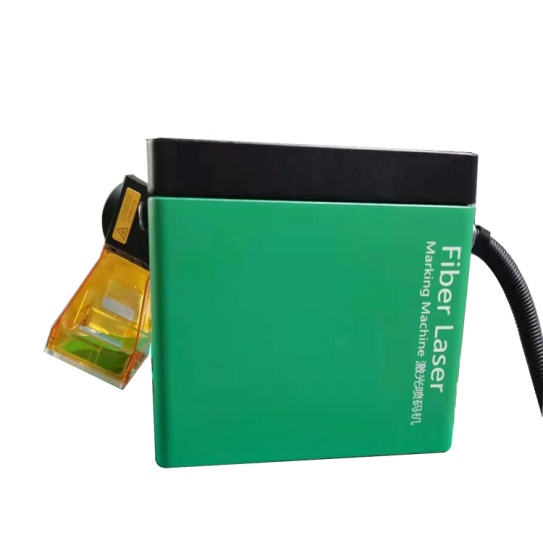

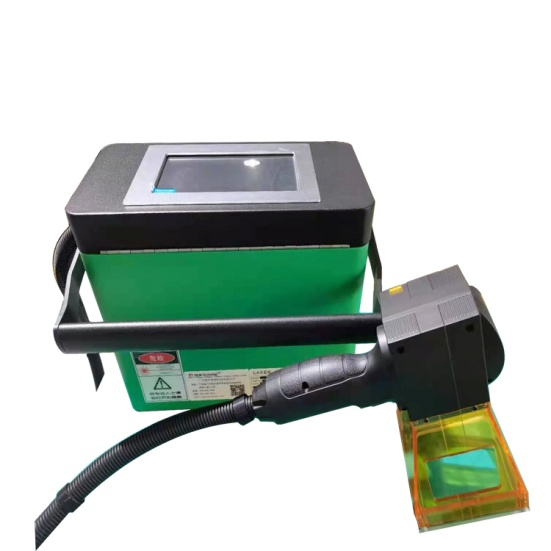

818 Series Handheld laser marking machine

The handheld models for new research and development design, intelligent touch screen operation interface, thin body adopts high density material, body weight was only 12 kilograms, handheld marking head weight 1.98 kg, convenient and lightweight, equipped with a battery, even under the condition of no power supply can realize marking, speed, integration of the whole machine structure, compact small, simple operation, easy to use. Widely used in electronics, electrical machinery, pipes, batteries, hardware, auto parts, stainless steel and other industries.

Quote

Chat

Description

Fiber beam delivery with integrated optical isolator
Extremely lightweight and equipped with a handle for increased portability
Compact design, easy to move
Built in touch screen dispay for easier operation
50mm x 50mm or 100mmx100mm Marking Area

Technical Parameters
Model	LD20i	LD30i
Output power	≥20-watt	≥30-watt
Material	Anodized aluminum
Laser type	Fiber laser source
Laser wavelength	1064nm
Marking method	High-precision 2D scanning
Marking speed	≤7000mm/s
Control system	Highly- integrated motherboard, a 7-inch touch display built-in. Can be connected to extra 10-inch touch screen.
Operating system	WIN CE
Cooling system	Air cooling
Type of marking line	Dot matrix / vector (both are available)
Reflector size	Standard size:8.5mm
Marking range	Standard:50mm×50mm/100mmx100mm
Positioning method	Red light positioning
Lines of marking	Any number of lines within the marking field
Marking speed	650 characters/sec (the specific speed is related to product material and printing content)
Font	Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries
File format	BMP/DXF/HPGL/JPEG/PLT
Bar code / QR code	CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc.
Power	220V
Max. power	≤300W
