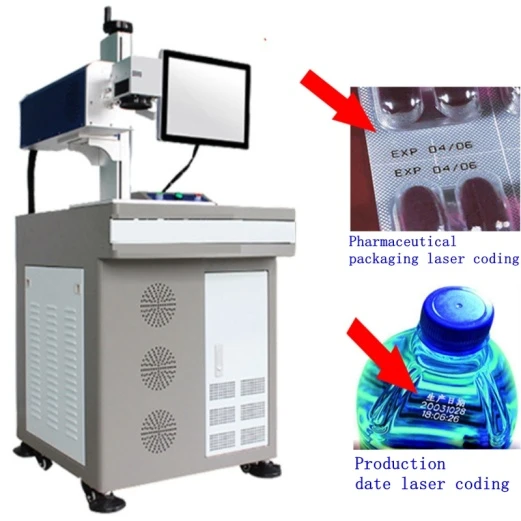

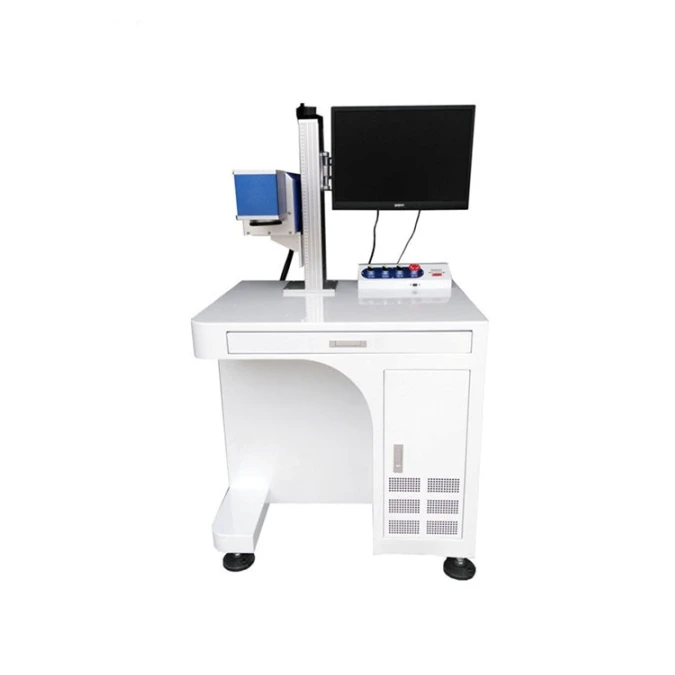

Co2 Integrate laser marking machine

|

The CO2 laser marking machine uses CO2 gas as the working medium, the laser wavelength is 10.64um, and the service life is as long as 20000-40000 hours. Mainly used for engraving and cutting bamboo, wood, acrylic, paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin plastics, PCB boards, etc


Description

  1. The marking speed is fast, the lines are delicate, and the marking is clear and permanent
  2. Graphics, text and serial numbers can be edited by software
  3. No consumables, low cost and power saving
  4. Mark environmental protection and comply with ROHS standard
  5. According to human body engineering mechanics,the desktop design improves work efficiency of operators

Technical Parameters

Model

CL-CO2

Power

20W/30W/50W/60W/100W

Cooling Mode

Air Cooling

Marking Speed

8000mm/s

Laser Source

Synrad/Coherent/Davi/Jingrui

Minumum Line Width

0.015mm

Pulse Frequency

1-25Khz/1-100Khz

Minumum Character

0.2mm

Field Lens Brands

Singapore Wavelength

Laser Wavelength

10.64μm

Marking Area

110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm

Environment

5℃-45℃, clean or dust-free

Control Card

JCZ Brand EZCAD

Power Supply

AC220V / 110V plug

Operating System

Win XP /7/ 8/ 10 (32 bit, 64bit)

Warranty

1 year
